Weichai WP10 connecting rod 612600030042 for engine overhaul and wholesale sourcing enquiries.
Request a quotation with engine details, assembly requirements and quantity.
Weichai WP10 connecting rod 612600030042 is a connecting rod assembly reference for engine overhaul enquiries. The WP10.380-20 parts catalogue reproduced by Top One Parts lists this number in the piston and connecting rod group. Confirm the full engine designation, serial number and assembly dimensions before selecting a replacement.
Quick purchasing answer: enquire using 612600030042 for the rod assembly, then confirm the matching cap, bush, bolts and bearing requirements. A connecting rod assembly and a set of connecting rod bearing shells are different purchasing items. Specify which components and quantities you need for the overhaul.
Reference identification | Specifications | Overhaul checklist | Wholesale quotation | FAQ
The cited catalogue identifies 612600030042 as a connecting rod assembly. Its assembly breakdown lists the rod body, cover, bush and bolts, while the bearing shells appear as separate entries in the piston and connecting rod group. Use this distinction when preparing the enquiry; confirm the actual quoted contents individually.

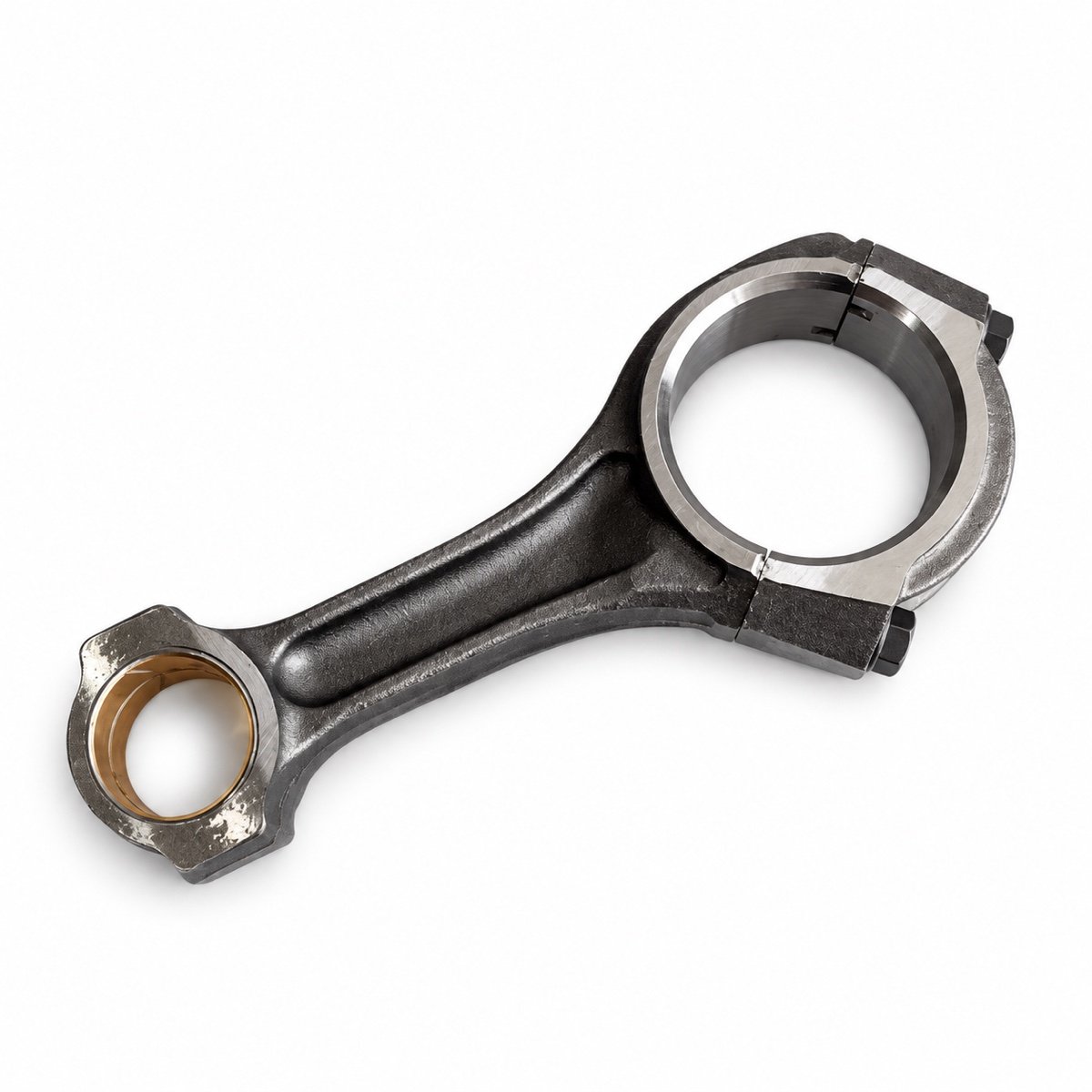

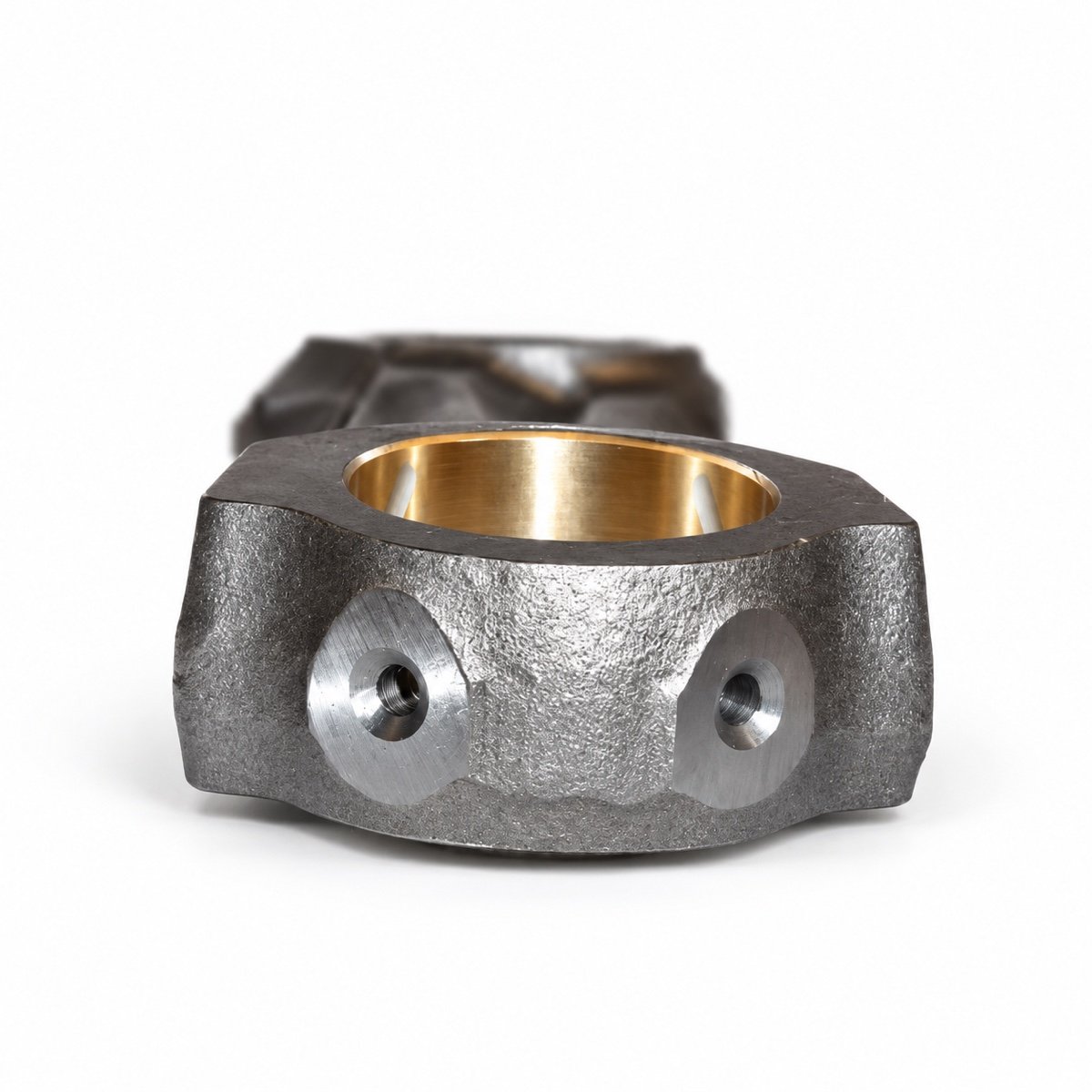

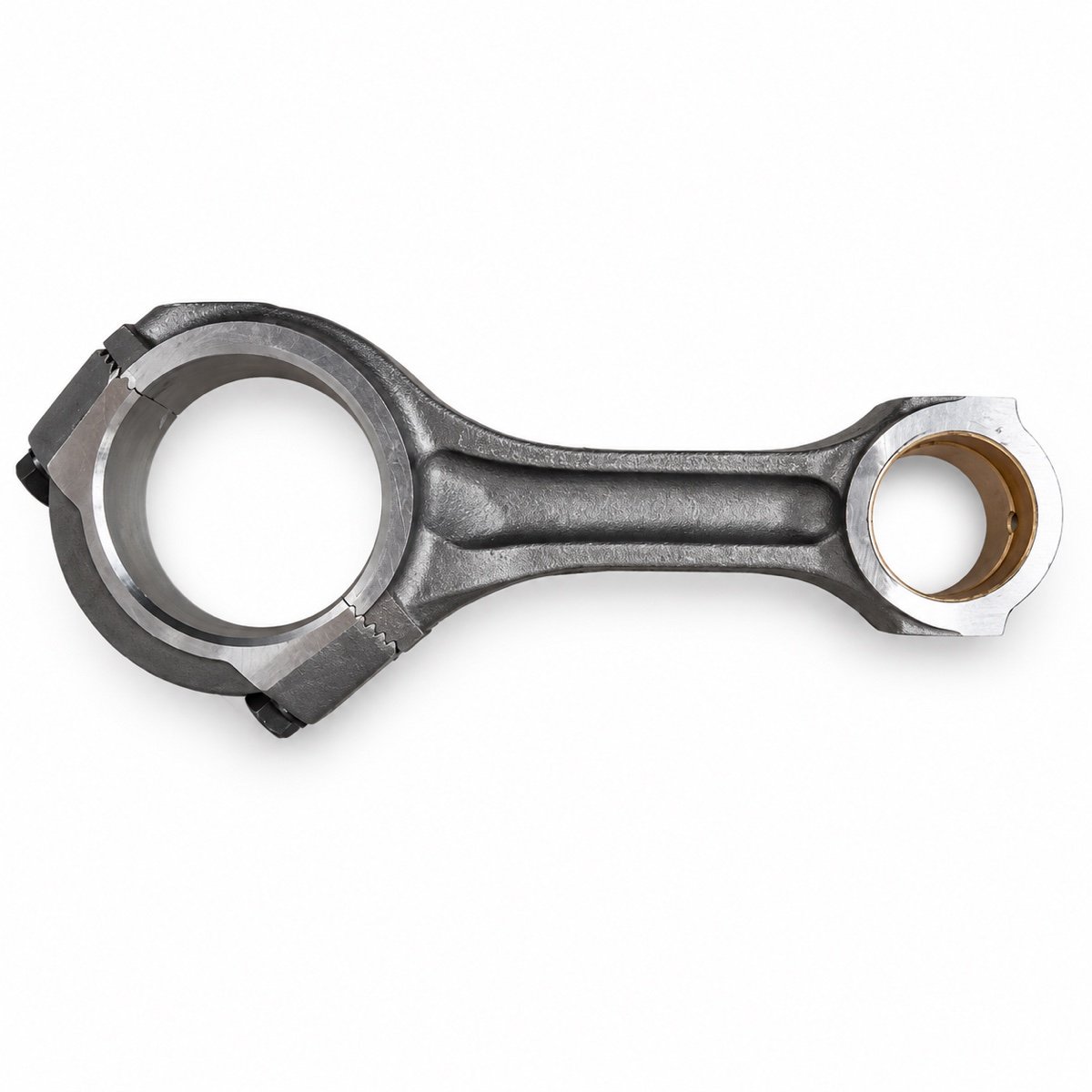

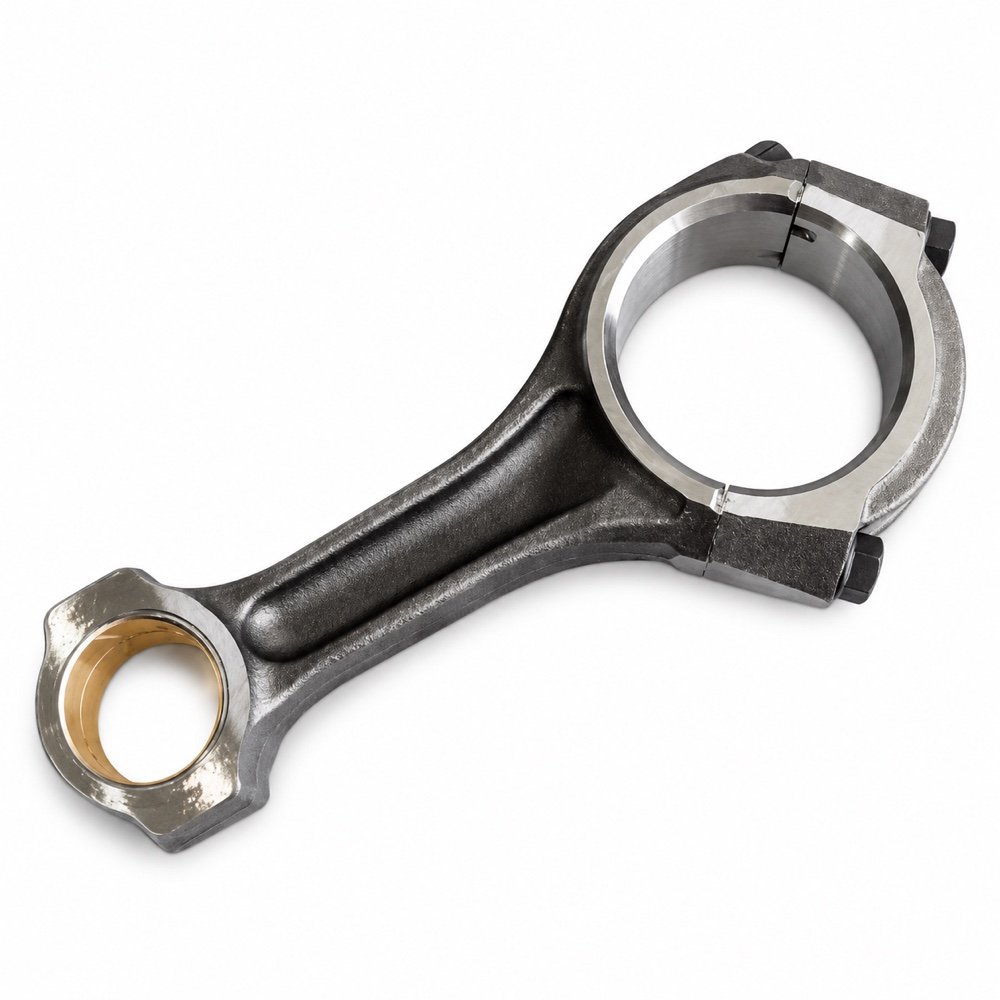

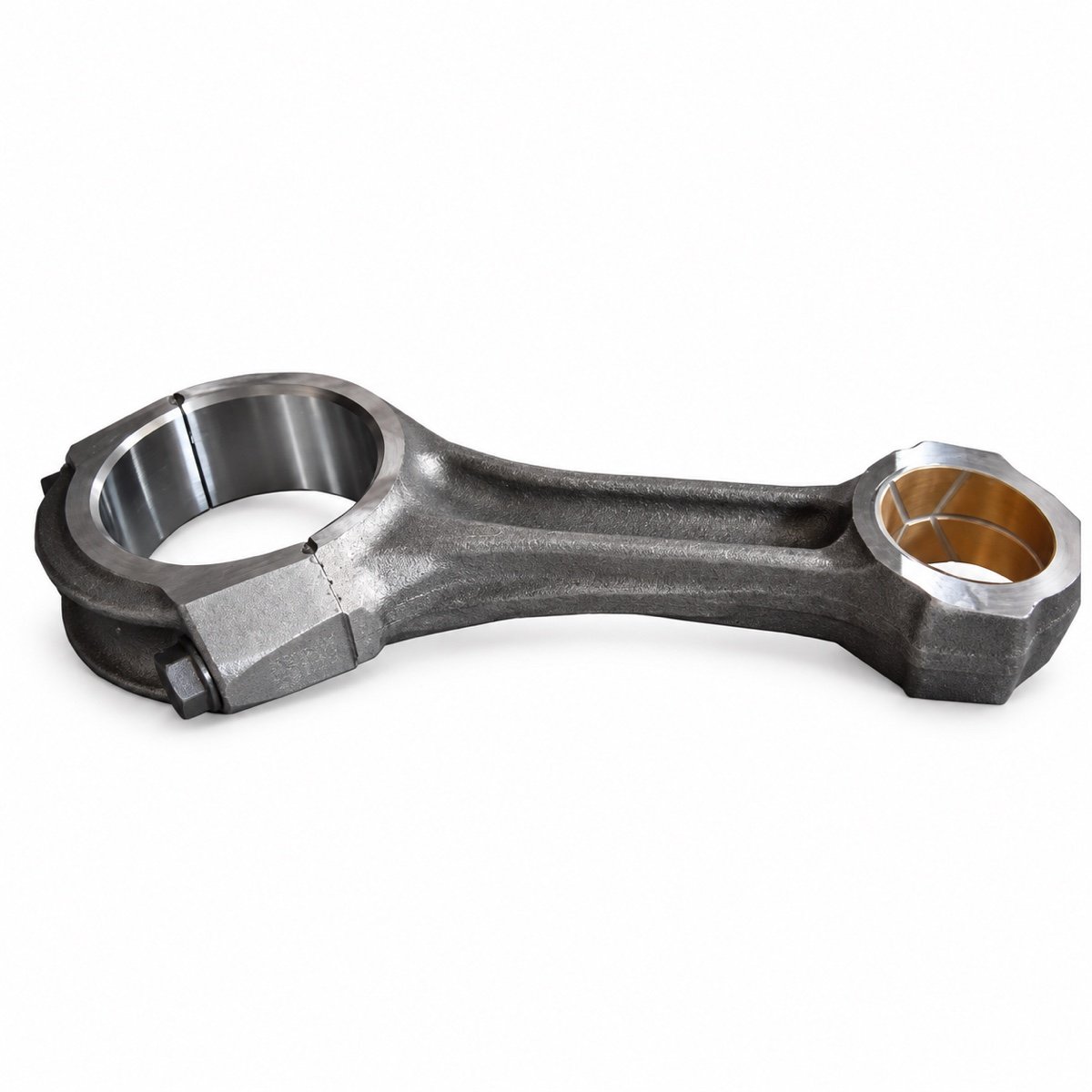

The main image is a retouched reference photograph from a web listing labelled 612600030042. Packaging, background and visible markings have been removed. Request current assembly photographs, identification details and dimensions of the offered unit before confirming the order. A reference photo does not establish supply condition or included accessories.
| Component | Engine connecting rod assembly |
|---|---|
| Purchasing reference | 612600030042 |
| Engine enquiry scope | WP10; verify the full engine designation, serial number and specific configuration |
| Assembly dimensions | Confirm centre-to-centre length, big-end bore and width, small-end bore and width |
| Cap and fasteners | Confirm the matching rod cap, bolt specification and quoted assembly scope |
| Bush and bearings | Confirm small-end bush condition and fit, bearing-shell references and required size |
| Inspection information | Request available dimensional, alignment and condition records for the offered assembly |
| Supply condition | Confirm new or reconditioned supply, quantity, included components and packing |
Use the correct workshop documentation for inspection limits, fastener replacement and tightening procedures. Request a quotation for the confirmed assembly rather than choosing by appearance alone.
For overhaul projects and distributor orders, list each confirmed engine application, reference, quantity and assembly requirement. State whether you need complete rods, bushes, bolts or bearing shells. This gives the supplier a clear purchasing list and helps compare quotations for equivalent supply scopes.
Ask for current availability, price, minimum order quantity, lead time, inspection documentation and warranty terms in the quotation. For repeat orders, retain the approved identification and specification record. Request protective packing for machined surfaces, corrosion protection and secure separation of assemblies during transport. Confirm packing dimensions and shipment weight for freight planning.
Request a WP10 connecting rod quotation with the reference number, engine details, dimensions required, quantity and destination.
The cited WP10.380-20 catalogue lists it as a connecting rod assembly. Use the complete engine details and dimensional requirements to confirm the replacement.
Universal WP10 compatibility is not established. Check the specific engine configuration, assembly identification and dimensions before ordering.
Confirm the quotation. The catalogue treats bearing shells as separate entries; a listed assembly breakdown or reference photograph does not guarantee the contents of every offered unit.
Confirm the quantity, matching caps, assembly specification and any matching or weight-group requirement specified by the rebuilder.
Provide 612600030042, the engine model and serial number, current-part photographs, dimensions or approved specification, supply condition, quantity and destination.
Browse related WP10 / WP12 engine parts for other overhaul enquiries.
Include the part number, engine model or serial number, quantity required, and destination country. Clear photographs of the engine nameplate and the old part can help explain what you need.
Use the engine series to browse the catalogue, then confirm the exact part number and engine details before ordering. A category listing alone does not establish that every listed part fits every engine in that series.
Include clear photographs of any markings on the old part and the engine nameplate with your enquiry. Describe the component you need and provide any available engine model or serial-number information.
