Weichai WP10 Piston Pin 61560030013

Weichai WP10 piston pin 61560030013 is a reference for piston pin sourcing during engine overhaul. The WP10.380-20 parts catalogue reproduced by Top One Parts lists 61560030013 as a piston pin in its piston assembly section. Confirm your full engine designation, serial number and required dimensions before ordering.

Quick answer: this page covers the piston pin, also called a gudgeon pin or wrist pin. It connects the piston to the connecting rod. Retainers, small-end bushes and pistons require separate confirmation in the quotation.

Reference identification | Specifications | Overhaul checklist | Wholesale quotation | FAQ

Identify the Weichai WP10 piston pin

Use 61560030013 as the starting reference for your enquiry. In the cited catalogue, piston pin retainers appear separately under 81560030012. This distinction helps workshops and distributors prepare complete overhaul orders. It does not confirm that retainers are included with a pin or that the reference fits every WP10 variant.

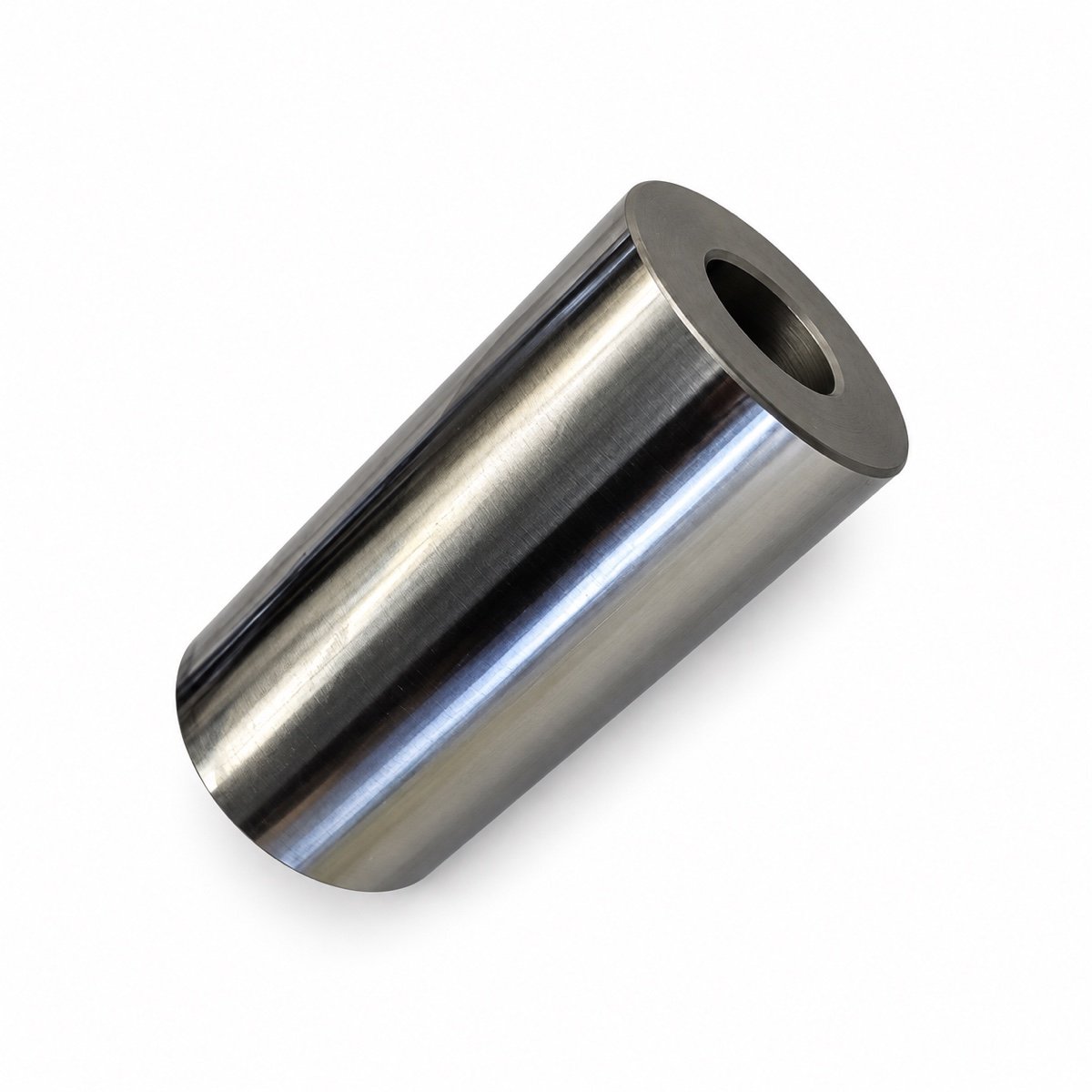

The main image is a retouched reference photograph from a supplier listing for this number. Request current photographs of the offered part and its packaging, together with dimensional confirmation. A photograph alone cannot establish fit, material grade or service condition.

Piston pin specifications to confirm

WP10 overhaul matching checklist

1. Identify the engine. Send the engine plate, complete model designation and serial number, plus the original part reference where available.
2. Check the required dimensions. Provide approved diameter and length specifications. Measurements from a worn pin can support identification but cannot replace service limits.
3. Match the piston and rod. Confirm the piston bores and small-end bush condition. Have the repair workshop assess clearances using the applicable engine repair data.
4. Confirm the retainers. Check the required retainer design and quantity for the actual assembly. Order these explicitly instead of assuming they accompany the pin.
5. Define the overhaul scope. State whether the order is for one cylinder, a complete engine or distributor inventory. Separate each component and quantity on the purchase list.

Wholesale enquiries for piston pins

For repair workshops, engine rebuilders and parts distributors, a clear parts list makes quotations easier to compare. Include the reference, verified dimensions, required pin quantity, companion components and destination. Ask for price, minimum order quantity, availability, lead time, inspection documents and applicable warranty terms.

For export orders, request packaging that protects the finished pin surfaces during handling. Confirm corrosion protection, individual separation, carton quantities, gross weight and shipment dimensions with the supplier before freight booking.

Request a Weichai WP10 piston pin quotation with reference 61560030013, engine details and your overhaul parts list.

Frequently asked questions

What is part number 61560030013?

The cited WP10.380-20 catalogue identifies 61560030013 as a piston pin. Use the number together with engine details and dimensional checks.

Does this piston pin fit every WP10 engine?

Compatibility needs confirmation for the exact engine variant. The WP10 family name alone is insufficient for selecting a replacement.

Are retaining clips included?

Inclusion must be specified in the quotation. The catalogue lists retainers separately, so request the required reference and quantity explicitly.

Which dimensions are needed for a quotation?

Confirm outside diameter, overall length, bore and end details, plus the matching piston and rod-bush requirements. Use approved dimensions and tolerances.

How should I order pins for an engine overhaul?

Send a component list with quantities for pins, retainers, pistons and any required bushes. Confirm every line against the actual engine assembly.
